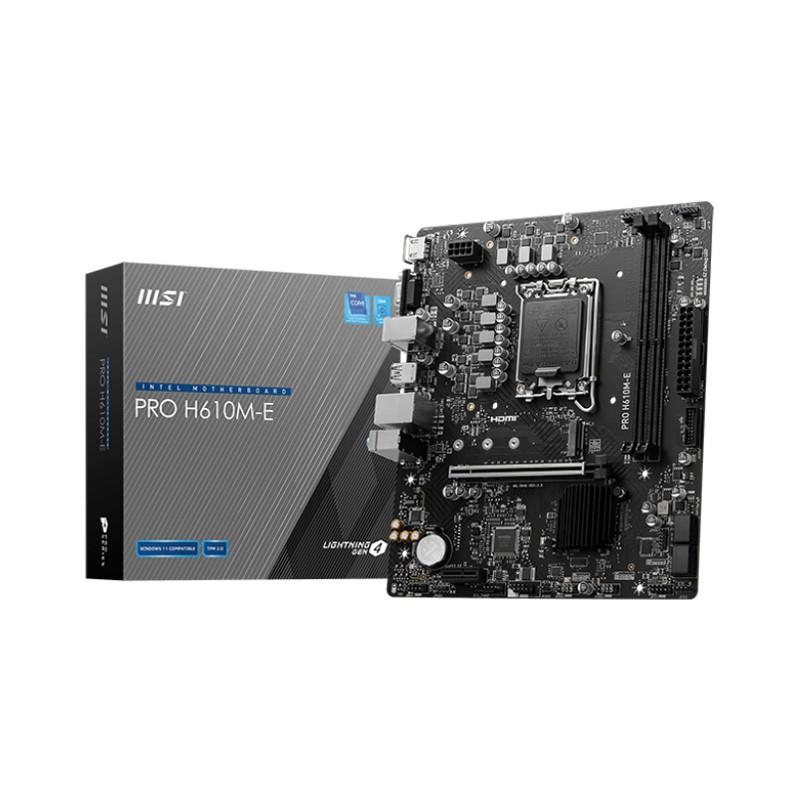

Brand MSI Model PRO H610M-E DDR5 CPU Support Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 CPU Brand Intel Socket 1700 Chipset INTEL H610 Memory Support 2 x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Memory Type DDR5 Memory Bus 5600 MHz Maximum Memory Bus 5600 Memory Slot 2 Graphics 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Multi Graphic Support N/A Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio Expansion Slots 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) Maximum PCIe Version PCIe 4.0 Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. M.2 Storage Type Support NVMe M.2 Slot 1 USB 4 x USB 2.0 (Rear) 4 x USB 2.0 (Front) 2 x USB 3.2 Gen1 Type A (Rear) 2 x USB 3.2 Gen1 Type A (Front) Internal I/O Connectors 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x CPU Fan 2 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports Back Panel Connectors 1 x HDMI™ 1 x VGA 1 x Keyboard / Mouse 1 x LAN port 1 x Audio Connectors 2 x USB 3.2 Gen1 Type A (Rear) 4 x USB 2.0 (Rear) LAN Realtek® RTL8111H Gigabit LAN Wireless Data Network None Form Factor Micro ATX H/W Monitoring N/A BIOS N/A Special Features 4x EZ Debug LED Software Features N/A Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit Package Contents N/A Package Dimension (W x D x H) : 26.50 x 26.00 x 5.50 cm Gross Weight 0.71 KG Volume 3,789.50 cm3 ประกัน 3 ปี https://cf.shopee.co.th/file/th-11134202-7r98o-ls82tf4zr1cie2 https://cf.shopee.co.th/file/th-11134202-7r98w-ls82tfbdhp3rbf https://cf.shopee.co.th/file/th-11134202-7r98r-ls82tfgn9yyc8e https://cf.shopee.co.th/file/th-11134202-7r98z-ls82tfn10n8u21 https://cf.shopee.co.th/file/th-11134202-7r98p-ls82tfrqtqjt18
